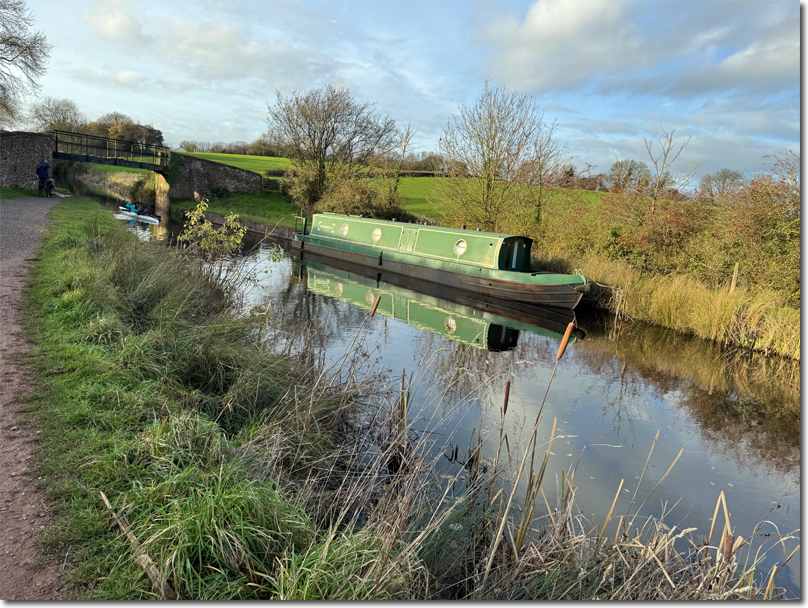

In the quiet stretch of the Grand Western Canal near Sampford Peverell, a forgotten piece of engineering history lies buried beneath the Swing Bridge. During emergency repairs following the devastating floods of November 2012, contractors uncovered a rare and intriguing structure: a timber stop gate, preserved beneath layers of silt and gravel. This discovery offered a glimpse into the canal’s original safety mechanisms, designed over two centuries ago.
Constructed between 1810 and 1814, the Devon section of the Grand Western Canal was built along a level contour, avoiding locks by using embankments and cuttings. One of the highest embankments—18 metres tall—lies near the Swing Bridge. In 2012, exceptional rainfall caused the canal to overtop and breach this embankment, prompting emergency damming and repairs. It was during these works that the stop gate was rediscovered.
According to a 2014 archaeologist’s report, “The stop gate is a wooden structure set within rebates in the abutments, and would have been one of a pair located either side of the bridge. In the open position it lay (as recorded) flat on the base of the canal. It is likely that it was pulled into its closed position by a horse. The stop gate incorporated a flap, which may have been manually opened to allow water through the structure when the gate was being lowered into its open position. There is some evidence to indicate that the stop gate was replaced by stop boards.”
The interpretive sign at the site adds further detail. It explains that stop gates were used to isolate sections of canal for maintenance or emergencies. At the Grand Western Canal, these gates were typically placed in pairs on either side of embankments, allowing the central section to be drained via culverts beneath. The Swing Bridge gate was unusual in its use of an overhead metal H-frame, which contained a hinged flap to ease the raising of the timber gate and to control water flow during lowering. This mechanism may have allowed gradual refilling of the drained section once repairs were complete.
After its rediscovery, the gate was carefully excavated by Canal Rangers and volunteers under archaeological supervision, then reburied beneath a protective layer of mud to preserve it. It is believed to be the only surviving stop gate on the canal, with others removed during past breaches and upgrades. The Swing Bridge gate thus stands as a rare survivor of early nineteenth-century canal engineering—an artefact of practical design, hidden beneath the towpath, waiting to be remembered.
Today, the site is marked by an informative panel that blends technical diagrams with historical context, reminding visitors that beneath the tranquil waters of the canal lies a legacy of ingenuity, resilience, and forgotten infrastructure.
